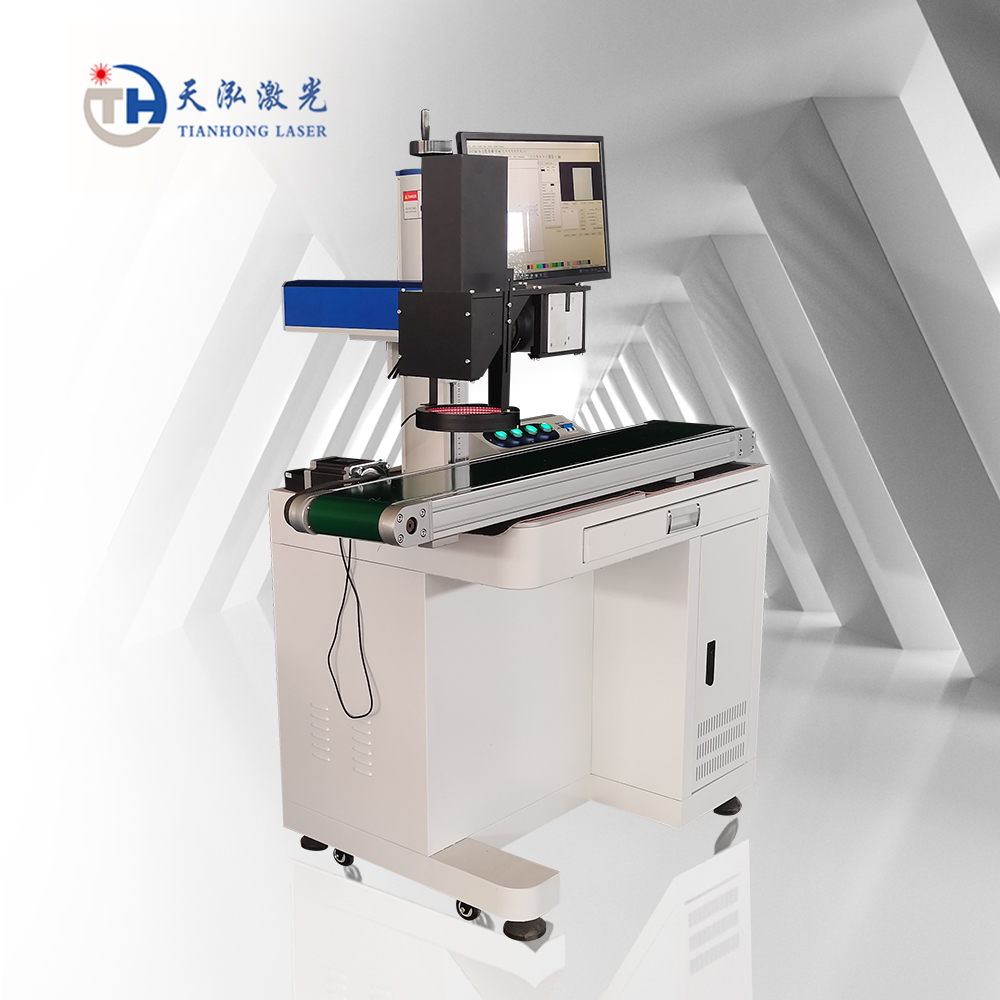

Visual Positioning Fiber Laser Marking Machine

Automatic Focus Vision System Fiber Laser Marking Machine
1.With no need for fixture positioning, the machine automatically captures the position of the product on vision.
2.Any number or any angle of products can be marked accurately by the machine to the designated position.
3.The machine can be equipped with assembly lines or other automatic loading and unloading mechanisms to save manpower and realize unmanned automatic marking.
4.The range of visual positioning can be set according to the size of the product.
5.Equipped with both an extremely high repetition rate and high optical quality, the machine has a fast marking speed and can achieve fine marking.
Power:
Availability:
Quantity:
  • TH-F
  • TH Laser
  • 84561100.90

✦Applicable Materials:

1.All metals: gold, silver, titanium, copper, alloy, steel, magnesium, zinc, stainless steel, various alloy steels, electrolytic plates, brass plates, galvanized plates, aluminium, various alloy sheets, and various metal plates.

2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, like ABS, PVC.


✦Application Industries:

1.Mechanical parts: bearings, gears, standard parts, motors, etc.

2.Instruments: panel, nameplates, precision equipment, etc.

3.Hardware tools: blade tools, implement, measuring tools, sharpening tools, etc.

4.Daily necessities: handicrafts, zippers, key chains, buttons, etc.

5.Electronic components: resistors, capacitors, chips, printed circuit boards, computer keyboards, etc.


Fiber laser marking machine features

1. Long life, its average working time can reach 80,000 hours

2. No consumable materials, Zero-maintenance

3. Excellent beam quality to achieve fine small marking

4. Can marking various figure, character, logo, bar code, bitmap, two-dimension code, photo etc

5. Support PLT, PCX, DXF, BMP, AI, vector graphics, bitmap etc

6. Stable equipment performance, continuous 24 hours working


Specifications:

Machine name
Laser Marking Machine
Laser power
20W 30W 50W 60W 80W 100W 120W optional
Laser type
Fiber laser
Laser source brand
Raycus (JPT MOPA M7 / MAX / IPG optional)
Laser Wavelength
1064nm
Marking area
100*100, 150*150, 200*200, 300*300mm (optional)
Marking depth
0-2mm ( Depending on material type and time)
Max marking speed
0-7000mm/s
Min linear width
0.02mm
Control software
EZCAD software
Graphic format supported
BMP, DXF, PLT, AI, DST, JPG,etc
Working voltage
AC220V 50HZ AC110V 60HZ
Cooling type
Air cooling

Machine Configurations:

1

4

33


Samples:

222

11111
