Features

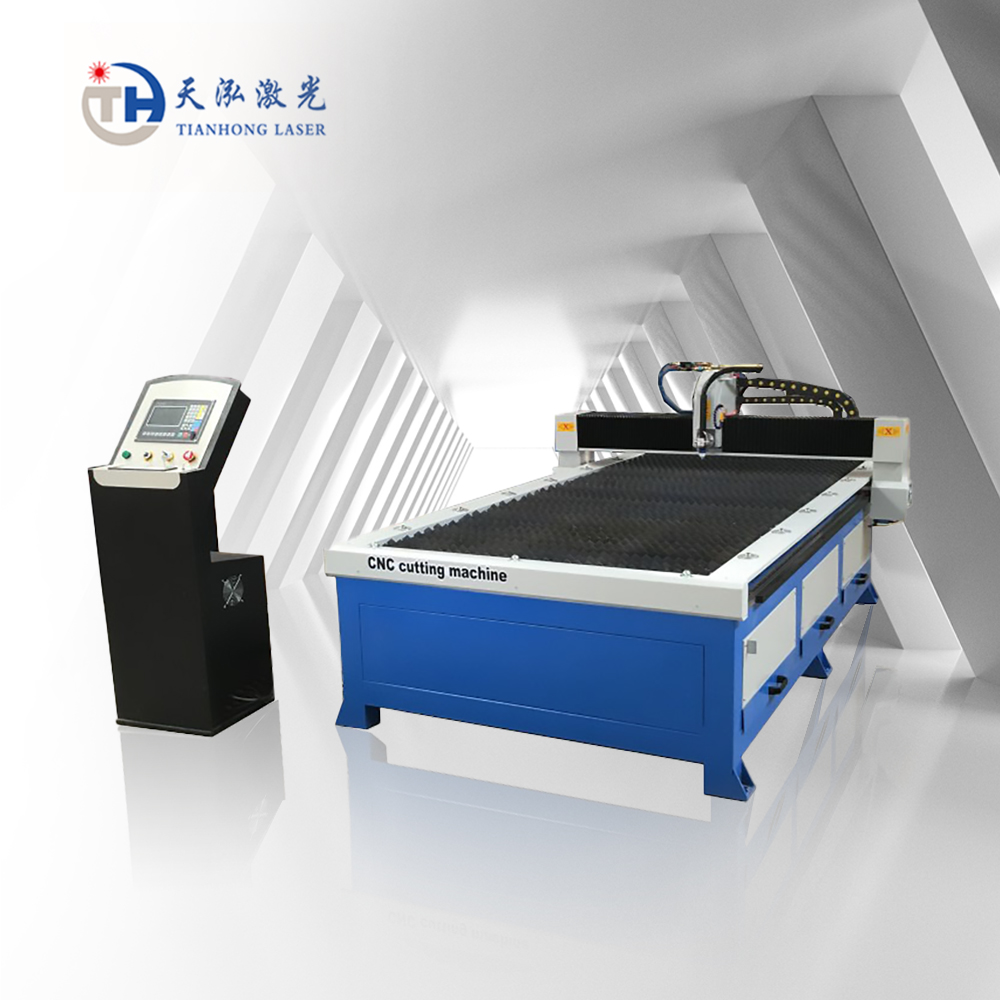

1.CNC Metal plasma cutting machine adopt bench-gantry structure,welding after the vibration aging treatment to eliminate stress,so that in the long-term use of no deformation.
2.All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack.
3.Planetary reduce drive system,its input and output error of only 16 arc minutes,at the same time,in the horizontal and vertical structure of the gear drive,an increase of automatic clearance compensation device so that it can accurately drive the structure of the implementation of the directives issued by the CNC.
4.Take the initiative to end beam:vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two.In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.
Technica:l Parameter
Model | TH-1325P | TH-1530P |
Working Area(Customizable) | 1300mm*2500mm | 1500mm*3000mm |
Processing Thickness | 0.5-30mm | |
Power | 8.5KW-10.5KW | |
Working Voltage | AC 220V/380V 50HZ/60HZ | |
Cutting Speed | 0-8000mm/min | |
Traveling Speed | 0-50000mm/min | |
Plasma Current | 45A-200A | |
Plasma Source Brand | China Huayuan/USA Heypertherm | |
Power Frequency | 50Hz | |
File Transfer | USB Interface | |
Controller | Beijing Start Or DSP With USB Interface | |
Torch Height Controller | Beijing Start | |
Machine Structure | Welded | |
X Y Transmission | Rack Gears | |
XYZ Axis Driver | Steper Motors | |
Working Dictate | G Code | |
Applicable Industry
Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,military industrial,wind power,Structural Steel,Boiler containers, Agriculture Machinery,Chassis electrical cabinets,Elevator manufacturers,Textile Machinery,Environmental protection equipment,advertising industry.etc.
Applicale Materials
All kinds of metal materials such as steel,copper,aluminum and stainless steel can be processed.Applies to iron plate,aluminum plate,galvanized sheet,White Steel plate,Titanium plates,and so on like the sheet metal.
Machine Configurations:
