TH-U
TH Laser

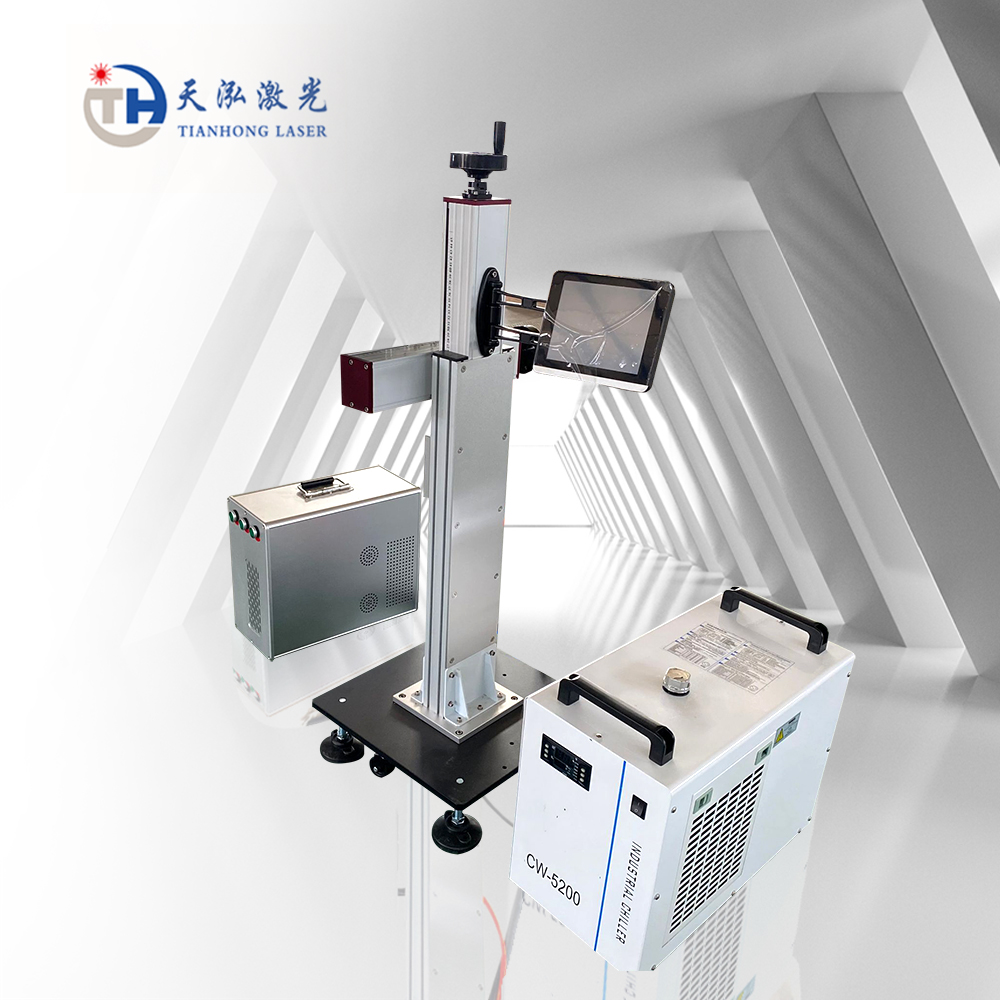

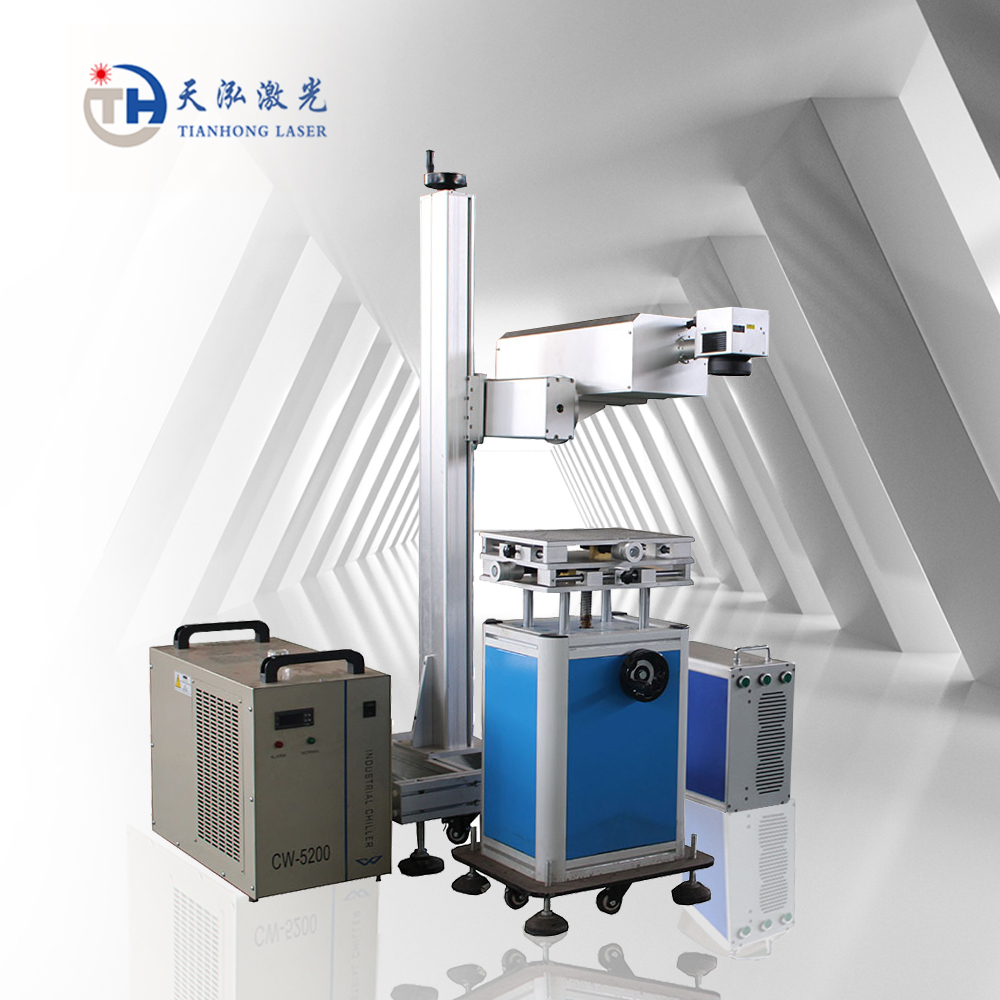

UV Laser -Flying
Main Feature
1. Ultraviolet (UV) laser is a kind of cold light,mainly used in super precise marking and engraving,particularly suitable for food,pharmaceutical packaging material marking,micro punching,glass high-speed dividing, silicon wafer complex graphics cutting,etc.
2. Without heat effect,the effect of laser marking and cutting is precise,smooth and steep.Except copper,355nm UV laser could be absorbed by many materials,so it is suitable for manufacture more material type.
3. Adopting doubling technique of intravenous frequency has greatly improve the stability of laser.Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
4. The machine takes 355nm pumped purple light laser device as the light source.Narrower pulse width and smaller heat affection contribute to generate peak power.The higher the peak power is,the wider the adapting range of materials is.This implement perfect printing in some relatively hard material.
5. Higher pulse stability,namely better pulse consistency of laser produces the same carving effect,so it’s very suitable for precision marking.Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
6. High efficiency of the photoelectric conversion and long service life.
7. Automatic in a rotary table(optional item),convenient feeding,fast speed,high efficiency.
8. It can support logos and graphs designed in DXF format from Auto-CAD,PLT,BMF,AI,JPG,etc.
9. It can mark date,bar code and two-dimension code automatically.
10. Superior performance,stable,high conversion rate and low energy consumption.
Technical Parameter
| Product name | UV Laser Marking Machine |
| Laser Type | Ultraviolet Laser |
| Laser Power | 3w 5w 10w 15w |
| Laser Wavelength | 355nm |
| Frequency range | 10-100KHz |
| Pulse width range | 13-80ns |
| Repeatability | ±0.1μm |
| Beam diameter | 0.8mm |
| Marking Speed | ≤7000mm/s |
| Working area | 110*110mm/150*150mm/175*175mm/200*200mm/250*250mmm/300mm*300mm |
| Application | Glass products, plastics, hardware and metal, ultra-fine engraving and marking |
| Cooling system | Water Cooling |
| Technical support | Online technical support, professional training videos |
Applicable Industry and Material
(1)It is widely used in electronic components,battery chargers,electric wire,computer accessories,mobile phone accessories(mobile phone screen,LCD screen)and communication products.
(2)Automobile and motorcycle spare parts,auto glass,instrument appliance,optical device,aerospace,military industry products,hardware machinery,tools, measuring tools,cutting tools, sanitary ware.
(3)Pharmaceutical,food,beverage and cosmetics industry.
(4)Glass,crystal products,arts and crafts of surface and internal thin film etching,ceramic cutting or engraving,clocks and watches and glasses.
(5)It can be marked on polymer material,majority of the metal and non-metallic materials for surface processing and coating film processing,pervious to light polymer materials,plastic,fire prevention materials etc..
Product Advantages
1.High quality light beam,small focal point,ultra- fine marking.
2.High speed and high efficiency.
3.Widely used,because most materials could absorb UV laser.
4.Low energy consumption,environmentally friendly,no consumables.
5.Little affect area,no heat effect,without material burned problem.
6.Continuous operation for 24 hours meet the needs of industrialized mass production of online or offline.
Sample
