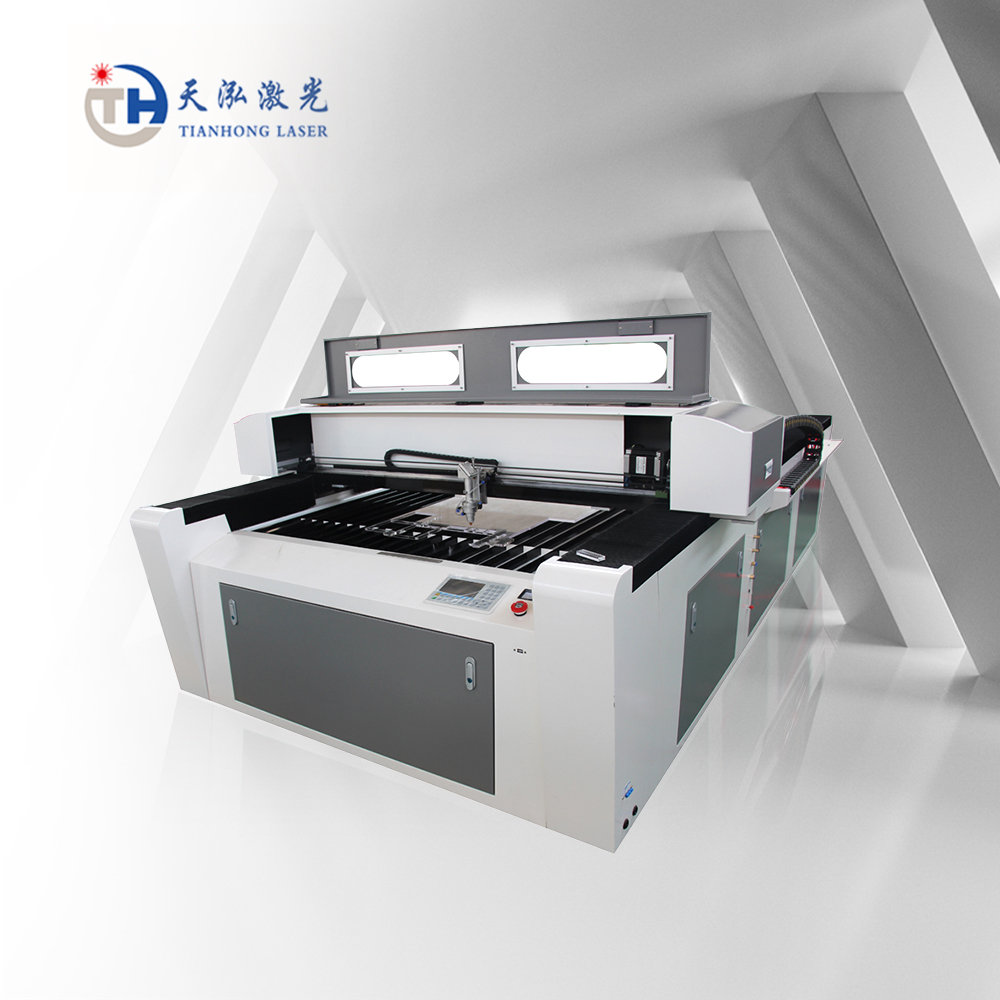

Metal and Non Metal CO2 Laser Machine

Mixed-cut:metal-Stainless steel,carbon steel and non-metal-acrylic,board.
CO2 Laser Tube 150W
Ruida Control System with Software
Stepper Motor and Driver
Water Chiller Included
Availability:
Quantity:
  • TH-C

  • TH Laser

  • CO2 1390/1325

Products Description

1.Mixed-cut:metal-Stainless steel,carbon steel and non-metal-acrylic,board.

2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment,extend the time of using.

3.Constant light system:The machine uses the constant light,achieving high precision cutting of the whole area.

4.High precision and Good stability:With precision ball screw transmission mechanism and optimized the nc system control,it can meet the precision parts processing,stable dynamic performance,also can work for long hours.

5.The cutting section with good quality:Mechanical follow-up cutting head system,cutting head always follows the material to keep the cutting point location unchanged,which insures smooth cutting section without processing again.It can adapt to flat or curved surface sheet cutting.

6.Adopt sealed co2 laser tube,main consumable items are electric energy,watercooling,auxiliary gas and laser light.
7.Sample structure,easy operation,stable laser device and low maintenance cost.


Technical Parameter

Model

TH-1325C

Working Area

1300*2500mm

Laser Power

150W/280W/300W Glass Laser Tube

Laser Type

CO2 Laser Tube,Water-Cooling

Engraving Speed

0-40000mm/min

Cutting Speed

0-20000mm/min

Power Supply

220V/50HZ,110V/60HZ

Position Accuracy

0.01mm

Repetition Accuracy

0.02mm

Graphic Format Supported

BMP, PLT, DST, DXF, AI

Guide Rail

Hiwin From Taiwan

Transmission Method

Belt Transmission

Software Supported

CorelDraw,PhotoShop,AutoCAD,TAJIMA

Driving System

Stepper Motor And Leadshine Driver

Net Weight

800kg

Optional Part

Up-Down Work Table, USB Port, Autofocus



 Cutting Parameter

Material

Cutting Thickness

Cutting Speed (mm/min)

Stainless Steel

0.5mm

2700

1mm

1800

1.5mm

1000-1200

Carbon Steel

0.5mm

3000

1mm

1800

1.5mm

1000-1200

Acrylic

10mm

300

20mm

90-120

MDF

10mm

300-400

Applicable Materials

Acrylic,wood,leather,cloth,leather,plastic,rubber etc.nonmetal materials and carbon steel,stainless steel etc.metal materials,and it can do cutting for both flat and curved surface.

Applicable industries

Advertising,metal products,handicrafts,leather,clothing,kitchenware,lighting and other industries.


Samples

未标题-1
