| Quantity: | |
|---|---|

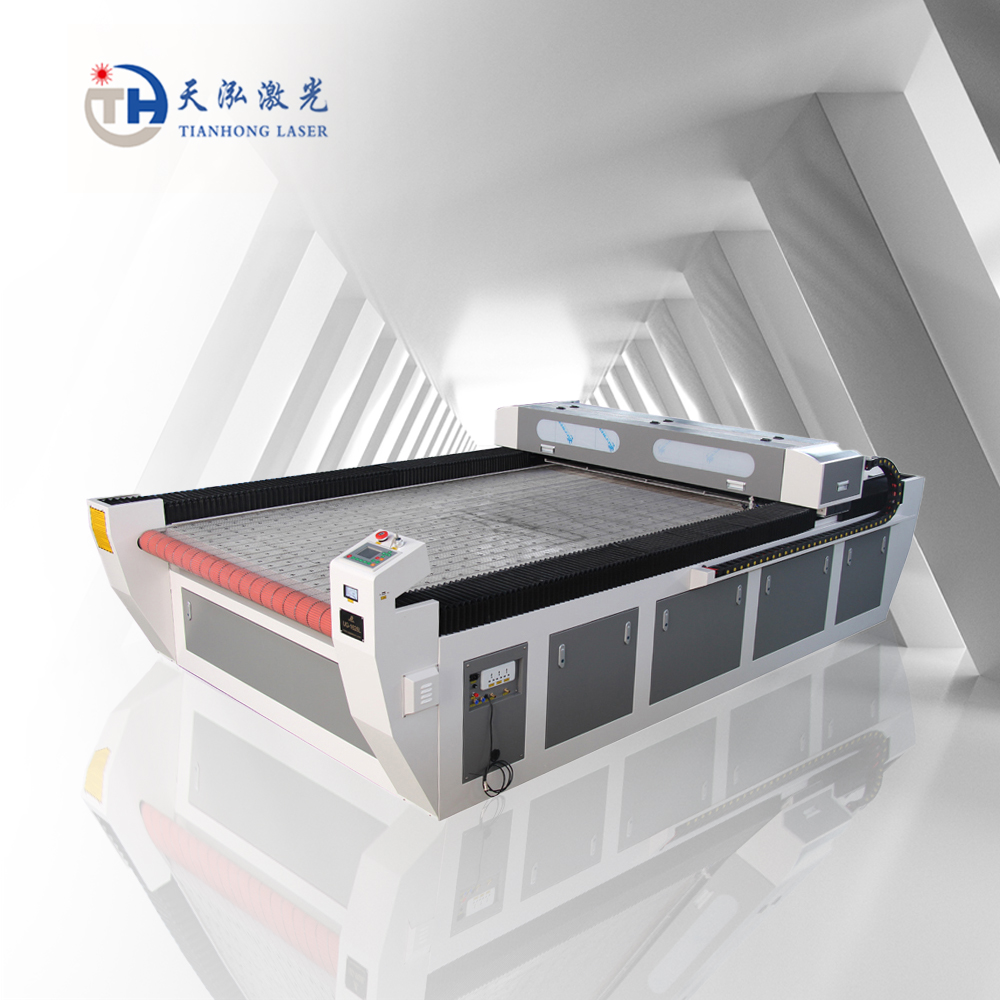

TH-C
TH Laser
8456110090
Main Features
1.Moving system adopts Taiwan HIWIN linear guide and precision gear,matched up with advanced DSP controlled three-phase stepper motor to ensure the working accuracy.
2.The only manufacturer who adopts square tube framework machine body 40% higher than simple iron sheet structure, never distortion.Prevents machine from quivering and resonance during long time work.
3.High efficiency tube with stable laser path,life time reaches to 10000 hours.
4.Red cross point offers highest accuracy position.
5.Humanized and modern design makes work happy,safe and easy.
6.Professional motion control card offers continue fast curve cutting together with shortest path selection.Shorten work time.
7.U disk offline operation makes work convenient.
Technical Parameter
Model | TH-C |
Cutting Area | 1300*2500mm /1500*3000mm |
Laser Power | 80W/100W/130W/150W/180W |
Laser Type | CO2 Sealed Laser Tube,Water-Cooled,10.6um |
Engraving Speed | 0-60000mm/min |
Laser Output | 1-100%Software Setting |
Resetting Positioning Accuracy | ≤±0.01mm |
Power Supply | AC 110-220V ± 10%,50-60HZ |
Operating Temperature | 0-45°C |
Operating Humidity | 5-95% |
Min.Shaping Character | English 1.0mm*1.0mm |
Graphic Format Supported | BMP,PLT,DST,DXF,AI |
Software Supported | Tajima,CorelDraw,PhotoShop,AutoCAD |
Driving System | Stepper |
Cooling Mode | Water-Cooling And Protection System |
Equipment Dimensions | 2.7*2.2*1.2M |
Net Weight | 400kg |
Recommended Spare Parts | Laser Tube And Lens |
Fabric,leather,paper,bamboo ware,acrylic,glass,thin film and canvas,etc.
Applicable Industries
Garments sampling,trademark,leather industry,shoemaking,decoration,advertisement industry,etc.
Samples
