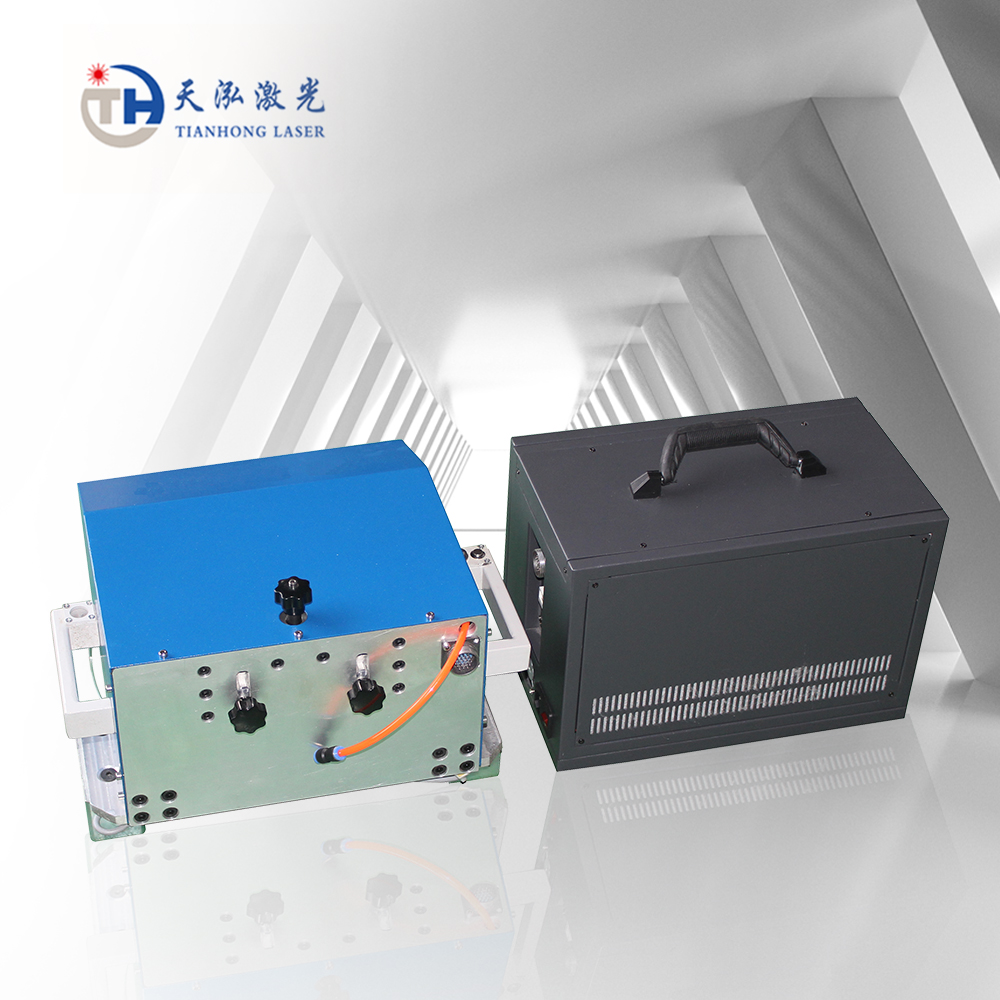

TH-D
TH Laser
8456110090
Productions description
1.Pneumatic marking machine is automatically incremented and the value optional.
2.The software can be auto updated with auto adjustment and trace.
3.As the marking location changes,the marking needle can move to the new location.
4.Input methods using manual input,made by different contents of different type of print documents.
5.This machine with graphics editor print function,the user can use AUTOCAD editing some simple graphics.Many characters for optional,as more than 200 types English characters.It can mark different characters same time with the rotary angles.
6.There is external routine interface in the software.Through the SQL script,it can connect the external database.
7.Automatically marking function after start without human intervention.
Technical Parameter
Model | TH-1509D/2008D/1309D/1810D/1109D/1103D/1403D/1202D |
Controller Types | Computer/Electrical |
Marking Range | 150*90/200*80/130*90/180*100/110*90/110*30/140*30 |
Marking Speed Range | 10-100words/min(Adjustable) |
Marking Depth Range | 0.05~1.0mm(According To The Materials) |
Compressed Air Pressure | 0.4~0.8Mpa |
System Functions | 1,Mark Character Input,Editing,Marking |
2,VIN Code Automatically Calculated,Setting,Marking | |
3,Serial Number Setting,Automatically Increase,Marking | |
4,Tag Data Query,Reporting,Print | |
,Characters,Graphics,English Character Editing | |
Marked Font Size | Arbitrary Adjustable |
Tag Character Content | 0~9 figures,A~Zlarge,Lowercase Letters Graphics,Characters (Users Can Be Random Homemade) |
Operating Voltage | 110V/220V 50HZ ±10% |
Machine Power | ≤200W |
Marking Direction | up,down,lefe,right,radian |
Working Environment | Temperature:5~+35°C Humidity:≤80% room |
Safety | Insulation Resistance:Normal Atmospheric Pressure≥5MΩ/500V |
Electric Strength:~50HZ/1500V/1min | |
Leakage Current:≤0.75Ma | |
Gross Weight | 15KG |
Advantages Of The Machine
1.Marking automatically with whatever characters,such as Chinese,English,graphic,serial number.
2.Smart and portable,easy to carry .Numerous option for fonts,supporting edit fonts .
3.Marking depth is adjustable by controlling the marking pin.
to work with various kinds of supports (such as Pneumatic support, Electromagnet support, circumferential support and so on).
5.Pneumatic Dot Peen Marking Machine is able to mark on flat planes or uneven planes (level difference within 3mm). If installed with circular marking control box and rotatory support, the marking machine can mark on cylindrical surface as well.
Sample
