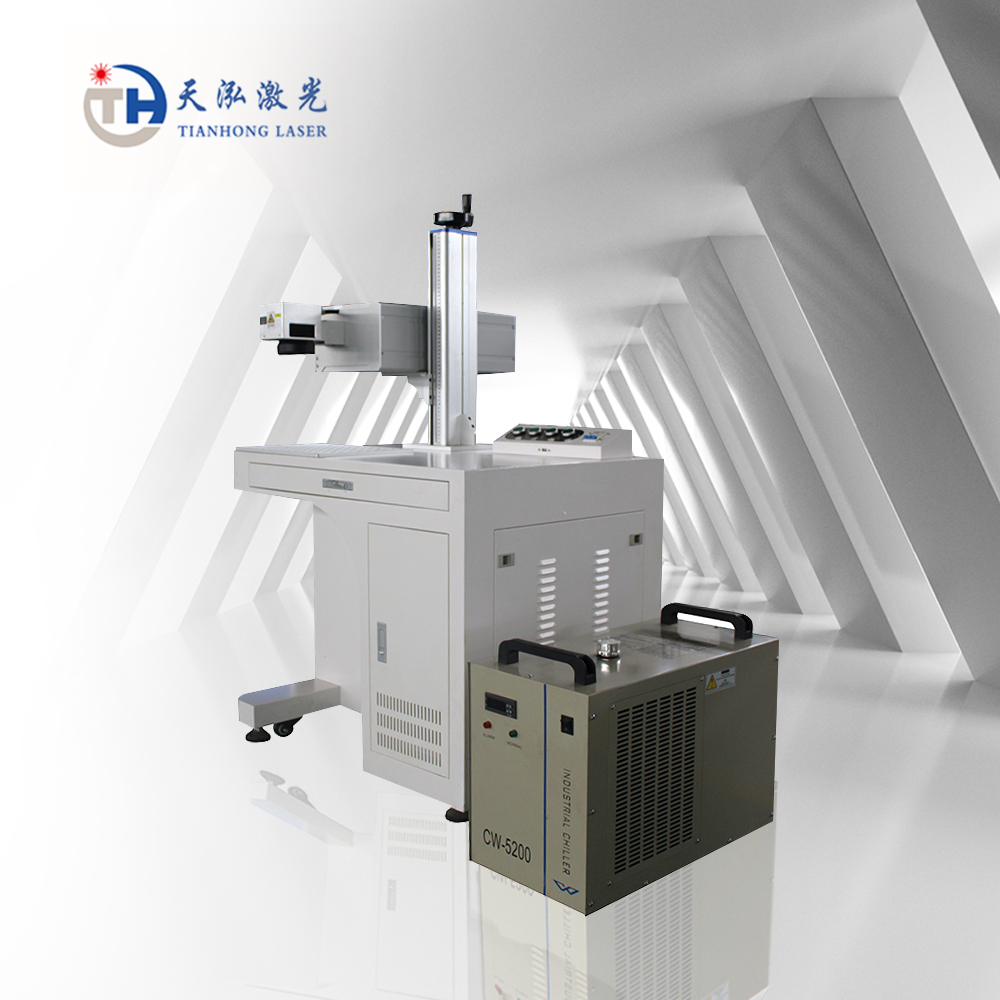

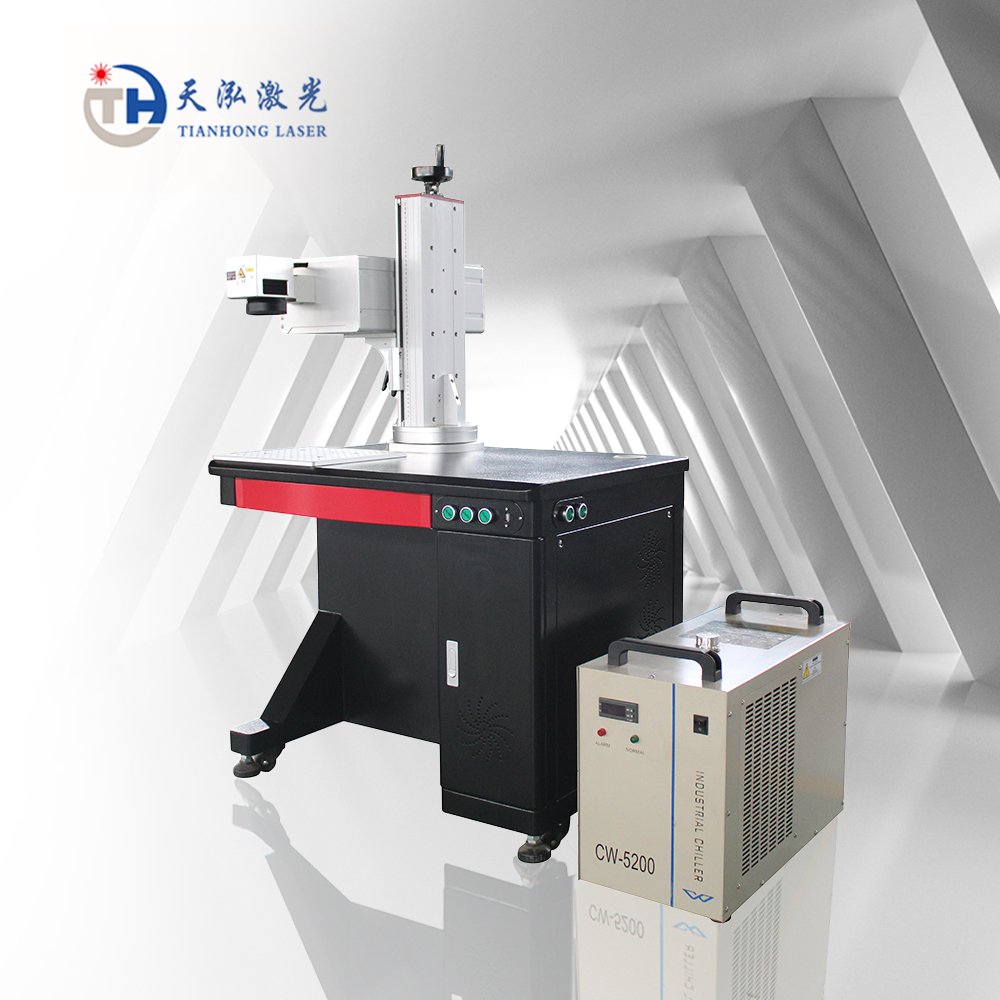

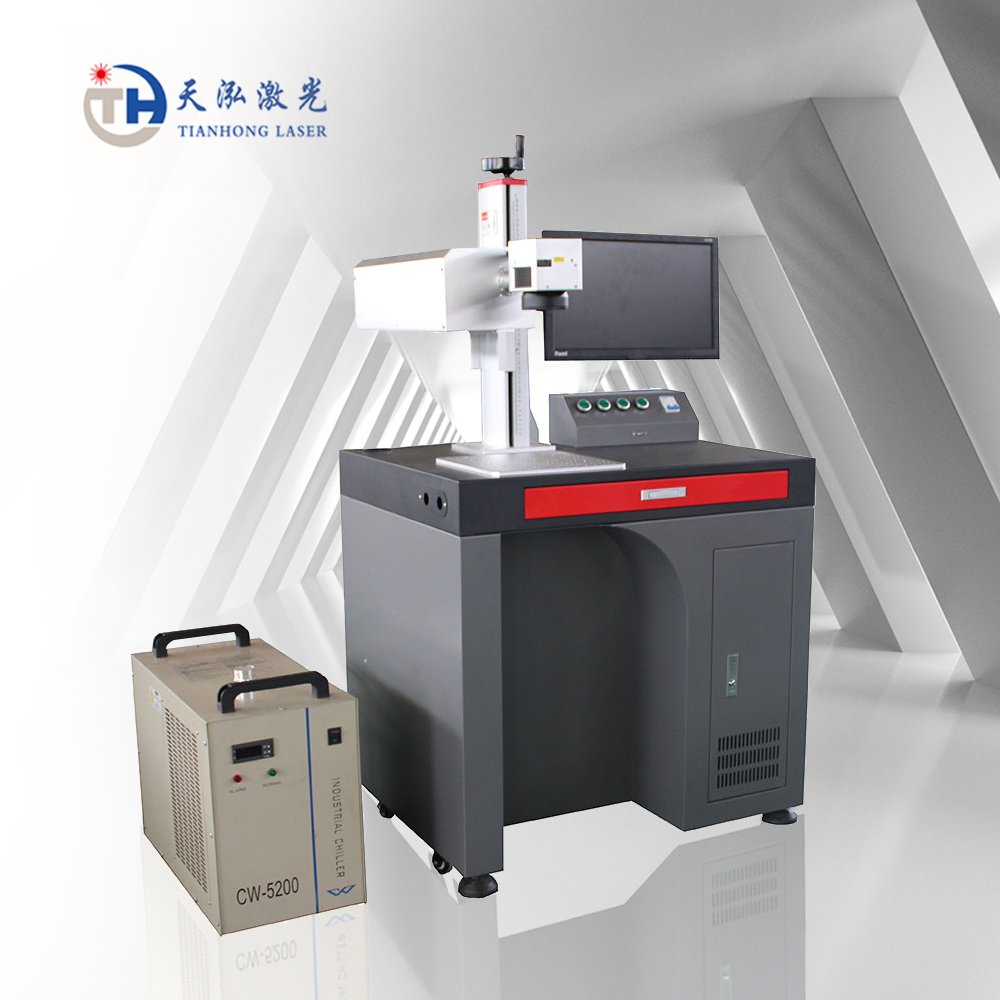

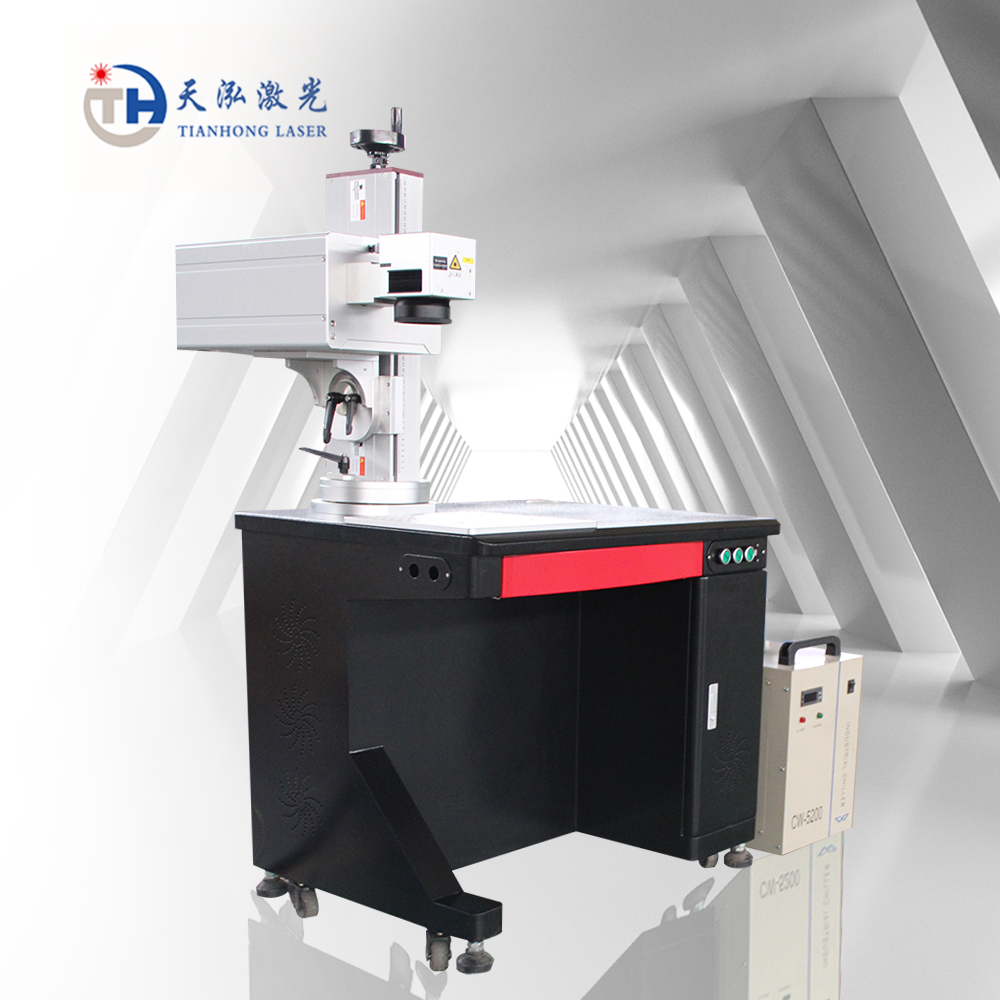

TH-G
TH Laser
Green Laser
Main Feature
1.Most advanced.New style Green laser marking machine is the 3rd-generation laser marking machine which is manufactured by the most advanced laser technology in the current of the word.
2.Delicate marking.High quality laser beam(near to the limit of diffraction,exporting TEM00 fundamental transverse mode,M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker).Therefore it is very suitable for delicate marking.
3.High Marking Speed.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,can achieve high speed marking,and control thedepth and shape of the facula.
4.Comparative advantage.The processing speed is 2-3 times than the traditional marking machine.
5.Compact design.The size of the machine is very small,potable.Suitable for mobile and fixed working.
6.Ten years life.Ultra-low running cost.The service life of the laser module if more than 100000 hours.The unit power of the whole machine is no more than 0.5kw.
7.High conversion efficiency.more than 30%.
8.Wide range of application.Green laser can mark on all kinds of metal materials and some kinds of nonmetal materials.
9.Easy Operating.Afford the specific marking software based on windows,which is real-time adjust the laser power and pulse frequency.You can edit what you need to mark directly by the specific marking software and the graphic software such as Auto CAD,CORELdraw.photoshop.
10.Free of maintenance.No need adjust laser path.
Technical Parameter
Model | TH-G | |
Wavelength (nm) | 532±1 | |
Work Mode | Q-Switched | |
Average Output Power (W) | 3W | 4.5W |
Pulse Width(ns) | 5ns | |
Peak Power(KW) | 15kW | 30KW |
Pulse Repetition Rate(KHZ) | 20KHZ | 20KHZ |
Power Stability(RMS,Over 8 Hours) | <1%, <3% | |
Transverse Mode | TEM00 | |
Beam Divergence,Full Angle(ARC) | <2mrad | |
Beam Diameter At Aperture(mm) | ~6.0mm | |
Beam Height From Base Plate(mm) | 16.5mm | |
Operating Temp(℃) | 10~35(℃) | |
Voltage | 220V/50HZ | |
Warranty | 2 Year | |
Expected Lifetime(hours) | 20000 | |
Applicable Materials
ABS Materials(Appliance Housing,Commodity),PVC,Plastic,Glass,Metal and Alloy(Iron,Copper,Aluminum,Magnesium,Cool System Green Laser Marking Machine For PCB With Qr Code,Bar Code-Buy Green Laser Marking Machine,Mini Laser Marking Machine For PCB,Qr Code Laser Marking Machine Product on Alibaba.com,Zinc etc),Rare metal and Alloy(Gold,Silver,Titanium),etc…
Samples
