| Quantity: | |
|---|---|

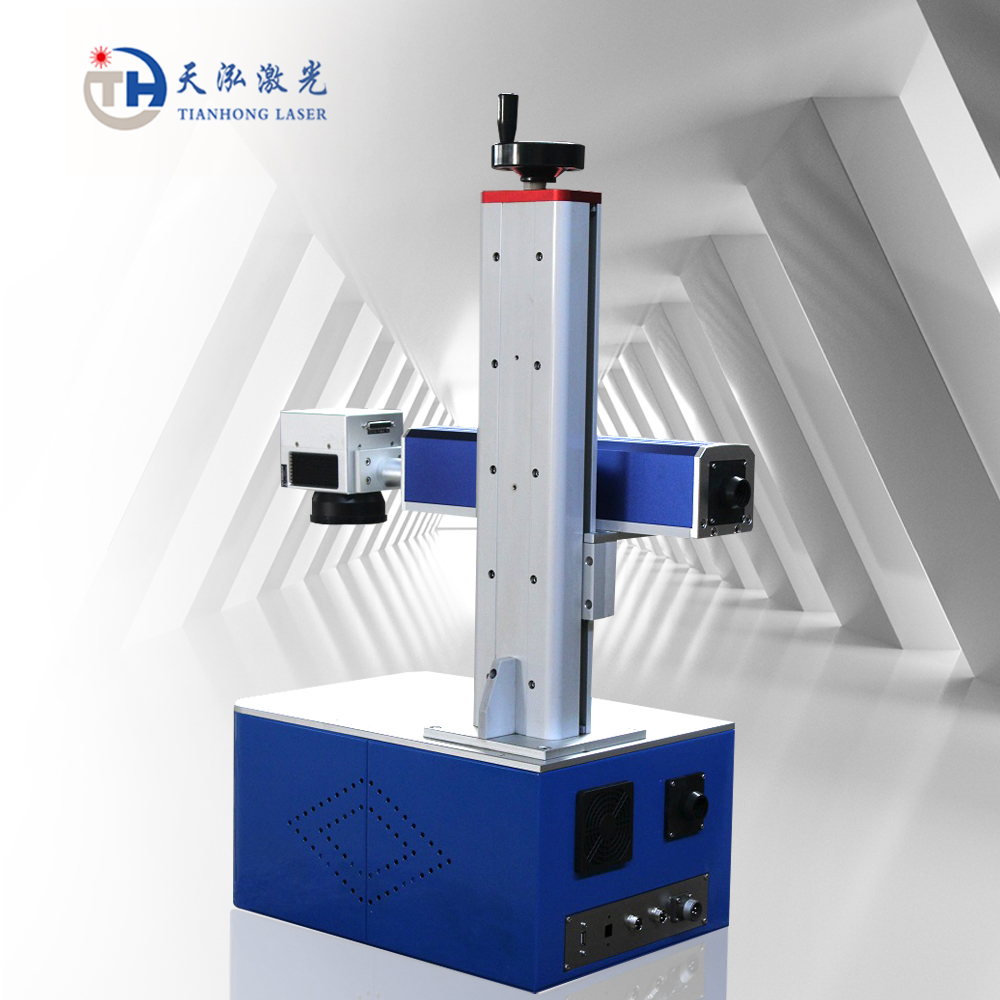

TH-F
TH Laser
8456110090
Main Feature
1.Most advanced.New style fiber laser marking machine is the 3rd-generation laser marking machine which is manufactured by the most advanced laser technology in the current of the word.
2.Delicate marking.High quality laser beam(near to the limit of diffraction,exporting TEM00 fundamental transverse mode,M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker).Therefore it is very suitable for delicate marking.
3.High Marking Speed.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,can achieve high speed marking,and control the depth and shape of the facula.
4.Comparative advantage.The processing speed is 2-3 times than the traditional marking machine.
5.Compact design.The size of the machine is very small,potable.Suitable for mobile and fixed working.
6.Ten years life. Ultra-low running cost.The service life of the laser module if more than 100000hours.The unit power of the whole machine is no more than 0.5kw.
7.High conversion efficiency.more than30%.
8.Wide range of application.The fiber laser marking machine can mark on all kinds of metal materials and some kinds of nonmetal materials.
9.Easy Operating.Afford the specific marking software based on windows,which is real-time adjust the laser power and pulse frequency.You can edit what you need to mark directly by the specific marking software and the graphic software such as Auto CAD,CORELdraw.photoshop.
10.Free of maintenance.No need adjust laser path.
Technical Parameter
Model | TH-20F | TH-30F | TH-50F |
Laser Power | 20W | 30W | 50W |
Laser Wave length | 1064nm | ||
Q-frequency | 20KHZ~30KHZ | ||
Divergence | 0.3mard | ||
Marking Range | 100*100mm | ||
Minimum Line Width | 0.02mm | ||
Minimum Character | 0.15mm | ||
Marking Depth | 0~0.5mm | ||
Engraving Line Speed | ≤7000mm/s | ||
Repeatability Accuracy | ±0.001mm | ||
Beam Quality | M2:1.2~1.8 | ||
Marking Format | Graphics,Text,Bar Codes,Two-dimensional Code,Automatically Marking theDate,Batch Number,Serial Number,Frequency,etc. | ||
Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | ||
Working Voltage | 220V±10%/50HZ/4A | ||
Unit Power | <0.5kw | ||
Use of the Environment | Clean and Dust Free Or Dust less | ||
Working Condition:Humidity | 5%-75%,Free Of Condensed Water | ||
Laser Module Life | >100000hours | ||
Applicable Industries
Mainly applied to the higher marking precision such as mobile phones buttons,plastic translucent keys,electronic components,integrated circuits (IC),electrical appliances,communication produgacts,sanitary ware,tools,accessories,knives,eyeglasses and clocks,jewelry,auto parts,lugge buckle,cooking utensils,stainless steel products and other industries.
Applicable Materials
Metals(including rare metals),engineering plastics,electroplating materials,coating materials,plastics,rubber,epoxy resin,ceramic,plastic,ABS,PVC,PES,steel,titanium,copper and other materials.
Samples
