TH-F
TH Laser
Fiber Cutting

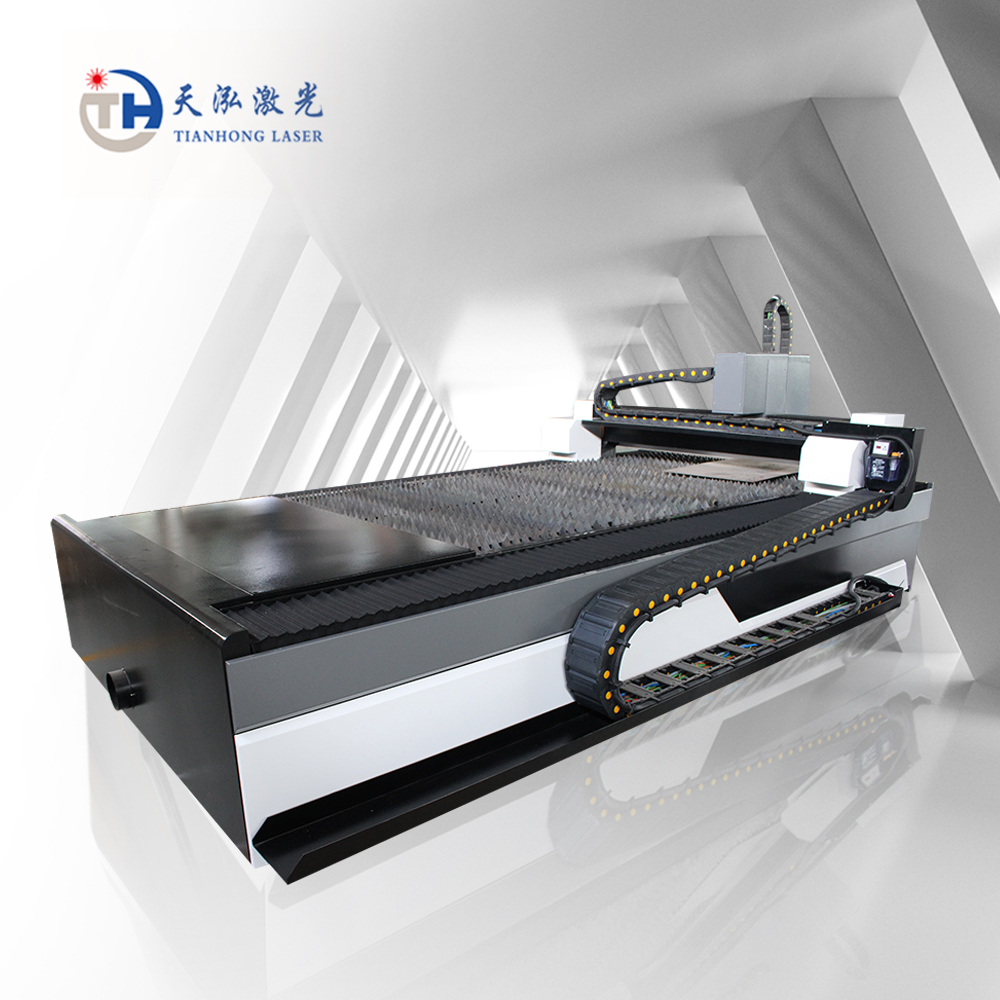

Introduction
Fiber Laser Cutting Machine adopts the advanced German IPG fiber laser,available to cutting most of the metal sheet materials.Integrated design of machines tool accessories,fast disassemble and installation;funnel collection of both left side and right side,space-saving,energy saving,and low cost.Movable Gantry machine tool structure,to ensure long-time stability and security; Import servo systems and CNC systems,with good compatibility,strong stability,convenient maintenance and excellent processing capacity.
Features
1.Import original packaging fiber laser,good bean quality,stable performance,without reflection lens and light path adjustment,maintenance free essentially,100,000 hours working time.
2.High rigidity machine bed,adopts exclusive standard annealing processing with high-temperature NC electric resistance furnace,ensure long-time stable precision of the machine tool.
3.High transformation efficiency of fiber laser,which up to 30%,saving the working power consumption by a large margin,achieves low operating costs.
4.Adopts the imported original guide transmission and servo motors,high precision,high speed.
5.Mooth cutting edge,little deformation.
6.Low power consumption,energy saving,overall power consumption1/3-1/5of the same power YAG machines3 times sheet metal cutting speed.
7.Laser generated without gas,air can be used to cut sheet metal.
Technical parameters
Model | Fiber Laser Cutting Machine |
Working Area | 3000mm*1500mm/Customized |
Laser Type | Fiber Laser Generator |
Laser Power(Optional) | 500W~12000W |
Transmission System | Gantry Double-Drive Structure |
Lubrication System | Fully-Automatic |
Maximum Speed | 100mm/min |
Positioning Accuracy | ±0.1mm |
Re-Position Accuracy | ±0.03mm/1000mm |
Supported Graphic Format | CAD,DXF.Etc |
Working Environment | Temp:0-40℃,Humidity:≤80%,No Condensation |
Total Power | 20KW |
Power Supply | Phase 380V/50Hz/60Hz |
Dimensions | 4450mm*2450mm*1800mm |
Gross Weight | 4000kg |
Applicable Materials
Cutting a wide variety of metal plates,tubes,mainly applicable to stainless steel,carbon steel,manganese steel,galvanized sheet,a variety of alloy plates,rare metal and other materials cutting.
Samples
