TH-C
TH Laser

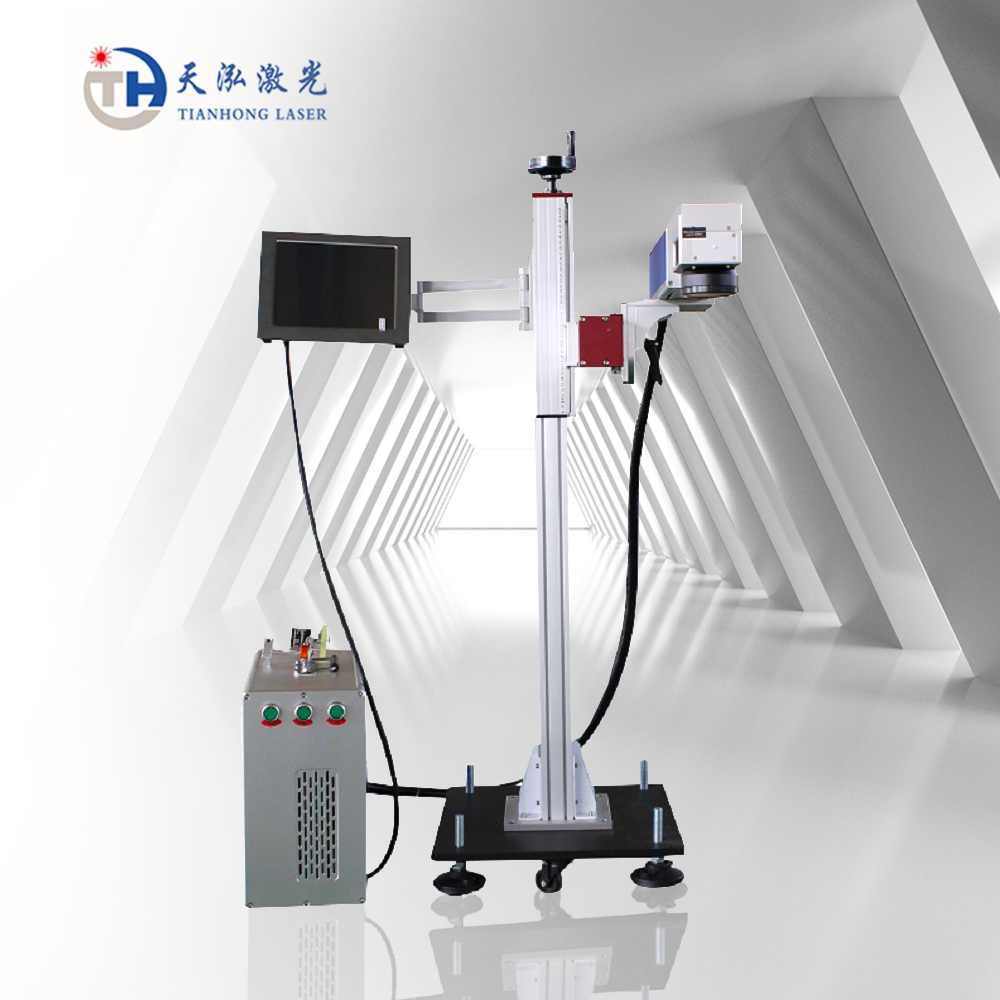

Flying Co2
Main Features
1.High precision and speed.Marking depth can be controlled easily.Continue working no need maintenance.
2.Metal RF tube together with high speed galvanometer and path expander fans system.stable path fast marking.
3.With glass CO2 tube.High power big working site with lower price
4.Industry computer,strong anti-interference and adaptation stable working position for 24 working.
5.Red position system avoids material waste.
6.Multi-function software with friendly interface support win7/xp/2000 together with many languages version.Supporting True Type font and single line font JSP,DMF,One-dimensional code and VIN code.
7.Supporting bmp,jpg,gif,tga,png,tif file together with ai,dxf,dst,plt.Work on 256 level grey image.Image processing for grey conversion,black white conversion and dot.
8 Free control system and outside equipment.
Technical Parameter
Laser Power | 30W/60W Air Cooling System |
Working Area | 100*100mm/150*150mm/300*300mm |
Cooling Mode | Water Cooling |
Laser Wavelength | 10.64um |
Response Time | 0.5ms |
Frequency Of Pulse | 20-100KHZ |
Marking Depth | ≤0.4mm |
Marking Speed | ≤8000mm/s |
Marking Lines | 1-10 lines |
Minimum Line Width | 0.01mm |
Minimum Character | 0.15mm |
Repeatability Accuracy | ±0.002mm |
Resolution Ratio | 0.1mm |
Marking Content | Text,Pattern,Date,Bar Code,etc |
Operation System | Microsoft Windows XP Or Windows 2000 |
Control Software | EZCAD Control Software |
Graphic Format Supported | BMP,JPG,GIF,TGA,Ai,DXF,PLT,PNG,TIF, AI,DXF,DST,etc. |
Unit Power | ≤1.2KW |
Operation Temperature | 5°C-40°C |
Relative Moisture | ≤ 90%, No Fog |
Supply Voltage | 220V/50HZ/10A |
Applicable Industry
Craft gifts,furniture,leather garments,advertising signs,model making,food packaging,electronic components,pharmaceutical packaging,printing plate,shell plate and so on.
Applicable industry
Leather,rubber,wood,bamboo products,organic glass,tile plastic,marble,jade,crystal,cloth and other non-metallic materials.
