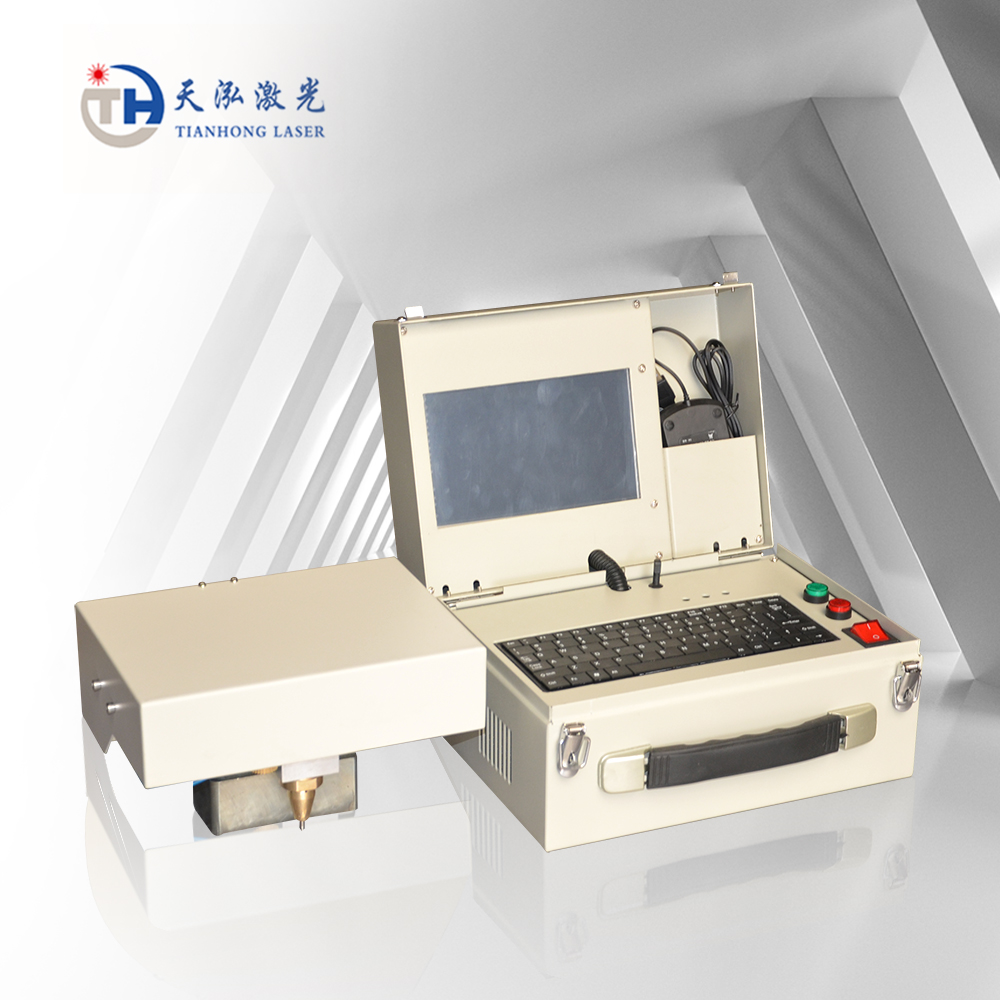

Portable Dot Peen Marking Machine 15090

1--Full color touch screen
2--Hiwin Guide Rail
3--Multi-core Connector
4--Stepper Motor and Driver
5--Thorx6 Graphics Editing Software
Availability:
Quantity:
  • TH-D

  • TH Laser

  • 8456110090

Productions description

1.Pneumatic marking machine is automatically incremented and the value optional.

2.The software can be auto updated with auto adjustment and trace.

3.As the marking location changes,the marking needle can move to the new location.

4.Input methods using manual input,made by different contents of different type of print documents.

5.This machine with graphics editor print function,the user can use AUTOCAD editing some simple graphics.Many characters for optional,as more than 200 types English characters.It can mark different characters same time with the rotary angles.

6.There is external routine interface in the software.Through the SQL script,it can connect the external database.

7.Automatically marking function after start without human intervention.

Technical Parameter

Model

TH-1509D/2008D/1309D/1810D/1109D/1103D/1403D/1202D

Controller Types

Computer/Electrical

Marking Range

150*90/200*80/130*90/180*100/110*90/110*30/140*30

Marking Speed Range

10-100words/min(Adjustable)

Marking Depth Range

0.05~1.0mm(According To The Materials)

Compressed Air Pressure

0.4~0.8Mpa

System Functions

1,Mark Character Input,Editing,Marking

2,VIN Code Automatically Calculated,Setting,Marking

3,Serial Number Setting,Automatically Increase,Marking

4,Tag Data Query,Reporting,Print

,Characters,Graphics,English Character Editing

Marked Font Size

Arbitrary Adjustable

Tag Character Content

0~9 figures,A~Zlarge,Lowercase Letters Graphics,Characters

(Users Can Be Random Homemade)

Operating  Voltage

110V/220V 50HZ ±10%

Machine Power

≤200W

Marking Direction

up,down,lefe,right,radian

Working   Environment

Temperature:5~+35°C   Humidity:≤80% room

Safety

Insulation Resistance:Normal Atmospheric Pressure≥5MΩ/500V

Electric Strength:~50HZ/1500V/1min

Leakage Current:≤0.75Ma

Gross Weight

15KG


Advantages Of The Machine

1.Marking automatically with whatever characters,such as Chinese,English,graphic,serial number.

2.Smart and portable,easy to carry .Numerous option for fonts,supporting edit fonts .

3.Marking depth is adjustable by controlling the marking pin.

Sample

samples-02
