| Quantity: | |
|---|---|

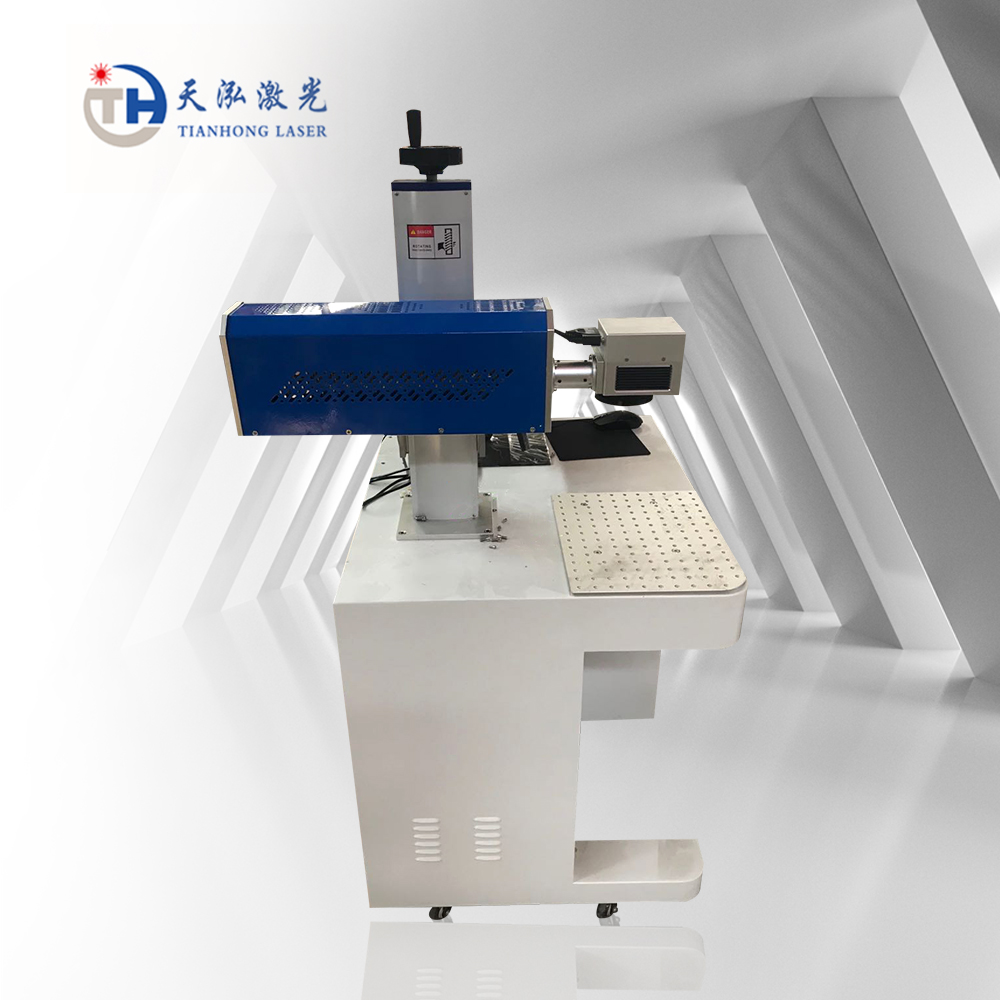

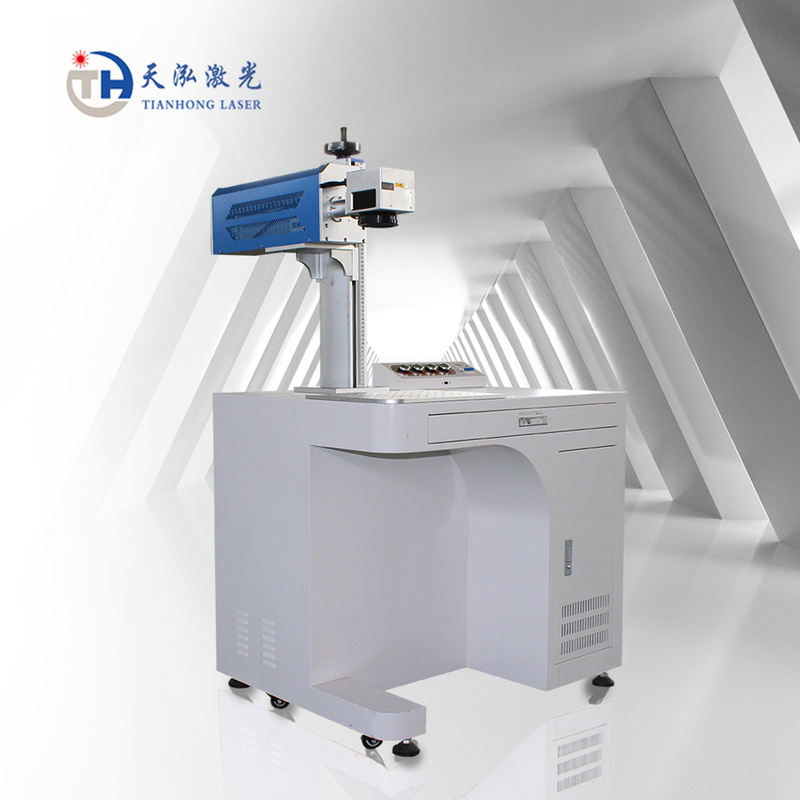

TH-B
TH Laser
8456110090
Main Features
1.The CO2 laser machine can conduct high contrast marking on non-metallic products, wood, PET, plastic glass and other industrial products at an ultra-fast speed.
2.The marking performance is clear and accurate, and the coding accuracy does not affect the products’ aesthetics.
3.Due to the power supply expectancy up to 30,000 hours (MTBF), the machine requires almost no maintenance and offers high performance and long-lasting reliability.
4.The linear speed of 900m/min meets the needs of high-speed packaging operations.
5.The 498 mm wide marking window provides more printing time, improving product throughput and maximizing productivity.
Technical Parameter
Laser Power | 30W/60W Air Cooling System |
Working Area | 100*100mm/200*200mm/300*300mm |
Cooling Mode | Water Cooling |
Laser Wavelength | 10.64um |
Response Time | 0.5ms |
Frequency Of Pulse | 20-100KHZ |
Marking Depth | ≤0.4mm |
Marking Speed | ≤8000mm/s |
Marking Lines | 1-10 lines |
Minimum Line Width | 0.01mm |
Minimum Character | 0.15mm |
Repeatability Accuracy | ±0.002mm |
Resolution Ratio | 0.1mm |
Marking Content | Text,Pattern,Date,Bar Code,etc |
Operation System | Microsoft Windows XP Or Windows 2000 |
Control Software | EZCAD Control Software |
Graphic Format Supported | BMP,JPG,GIF,TGA,Ai,DXF,PLT,PNG,TIF, AI,DXF,DST,etc. |
Unit Power | ≤1.2KW |
Operation Temperature | 5°C-40°C |
Relative Moisture | ≤ 90%, No Fog |
Supply Voltage | 220V/50HZ/10A |
Applicable Industry
1.Food and beverage industry: marking the outer packaging of food and beverage bottles with barcode, production date, product batch number, etc.
2.Daily necessities industry: marking buttons, cups, chopsticks, etc.
3.Clothing industry: marking leather shoes, leather, fabric clothes, jeans and other clothing with exquisite patterns.
4.Pharmaceutical industry: marking the production date and product batch number on the pharmaceutical paper packaging boxes and glass packaging.
5.Tobacco industry: marking various kinds of information such as code, expiry date, batch number, logo and product name on a variety of tobacco packages like package cigarettes, strip cigarettes and cartons.
Applicable Materials:
Ceramics, ABS, acrylic, plastics,Leather,rubber,wood,paper,bamboo products,organic glass,tile plastic,marble,jade,crystal,cloth and other non-metallic materials.
Samples
