TH-M
TH Laser
8456110090

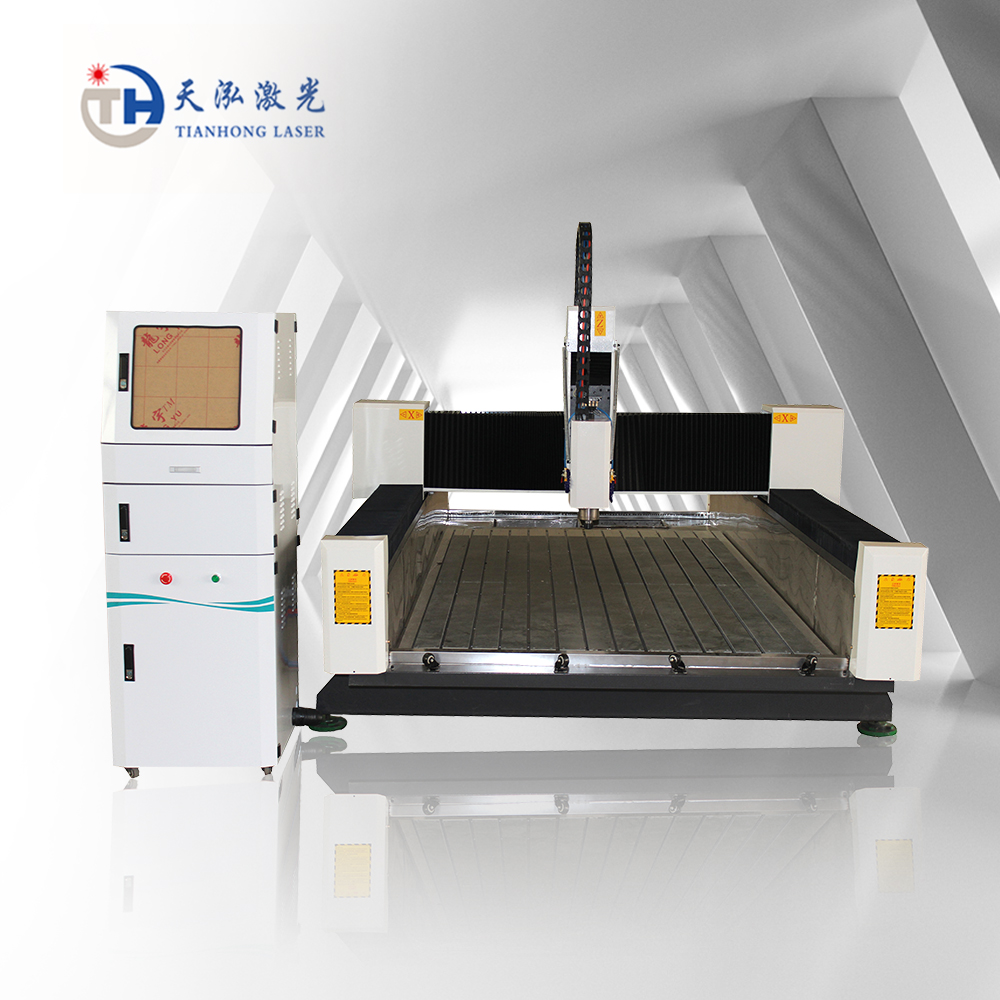

Machine Description
1.Heavy duty welded frame design,ensure the good accuracy and stability of the machine.
2.X Y Z uses 25mm PMI or HIWIN linear square guide rail,more stable and has longer life than normal round one.
3.Z axis use 25 mm hign precision ball screw,avoid spindle suddenly up and down.
4.Break point memory can stop work with wrong signals,avoid the waste of materials.
5.High voltage and high torque stepper driver,much more powerful than the normal stepper driver.
6.5.5KW water cooling spindle,which is suitable for long time and high temperature working.
7.NcStudio or DSP control system,easy and convenient to operate.
8.Many optional configuration and OEM service are available.
Technical Parameter
Model | TH-1325M |
Machine Body | Welded |
Working Area(XYZ Axis) | 1300*2500*200mm |
Moving Type | Gantry Moving |
X Y Z Rail | PMI/HIWIN Linear Square Guide Rail |
X Y Z Transmission | High Precision Ball Screw |
Spindle | 3.KW Water Cooling Spindle |
Spindle Speed | 24000rpm |
Inverter | 4.5KW Inverter |
Motor | Stepper Motor |
Driver | Stepper Driver |
Transformer | Yes |
Lubrication | Yes |
Max. Speed | 8m/min |
Max. Working Speed | 4m/min |
Voltage | AC 380V 50HZ |
Collects | ER20 3.175-12.7mm |
Repeat Reposition Accuracy | 0.01mm |
Cover | X Y Z cover |
Command | G Code |
Software | Artcam/Ucancam |
Control System | NC-Studio |
Different Configuraiton | Optional Driving Mode |
Servo Motor And Driver | |
Optional Control System | |
DSP |
Applicable Material
Marble,granite,China black,bluestone,jade,ceramic,crystal,glass,plastic,plexiglass,PVC board,bamboo,aluminum panels,metal material and so on.
Applicable Industry
Stone,tomb stone processing,advertising,decoration,crafts and 2D,3D carving,three-dimensional relief,cutting,drilling industries.
Sample
