TH-M
TH Laser
8456110090
Main Features
1.Wholly cast iron body and table moving type design,ensure the good accuracy and stability of the machine.
2.X Y Z uses 20mm PMI or HIWIN linear square guide rail,more stable and has longer life than normal round one.
3.Z axis use 20mm hign precision ball screw,avoid spindle suddenly up and down.
4.Break point memory can stop work with wrong signals,avoid the waste of materials.
5.high voltage and high torque stepper driver,much more powerful than the normal stepper driver.
6.3.0KW constant power milling spindle,which is suitable for long time and high temperature working.
7.NcStudio or DSP control system,easy and convenient to operate.
8.Many optional configuration and OEM service are available.
Techincal Parameter
Model | TH-9060M |
Machine Body | Cast Iron |
Working Area(XYZ Axis) | 900*600*300mm |
Moving Type | Table Moving |
X Y Z Rail | PMI/HIWIN Linear Square Guide Rail |
X Y Z Transmission | High Precision Ball Screw |
Spindle | 3.0kw Water Cooling Spindle |
Spindle Speed | 24000rpm |
Inverter | 3.7KW Inverter |
Motor | Stepper Motor |
Driver | Stepper Driver |
Transformer | Yes |
Lubrication | Yes |
Max. Speed | 8m/min |
Max. Working Speed | 4m/min |
Voltage | AC 220V/AC 380V 50HZ |
Collets | ER20 3.175-12.7mm |
Repeat Reposition Accuracy | 0.01mm |
Cover | X Y Z Cover |
Command | G Code |
Software | Artcam/ Ucancam |
Control System | NcStudio |
Different Configuraiton | Optional Driving Mode |
Servo Motor And Driver | |
Optional Control System | |
DSP |
Applicable Materials
Iron,steel,stainless steel,coopper,brass,aluminum,sliver,gold ect.alsoCan progress wood/mdf/plastic ect.
Applicable Industry
1.Lettering.
2.2D/3D engraving(like stamp/coin/metal crafts engraving ect).
3.Mould engraving.

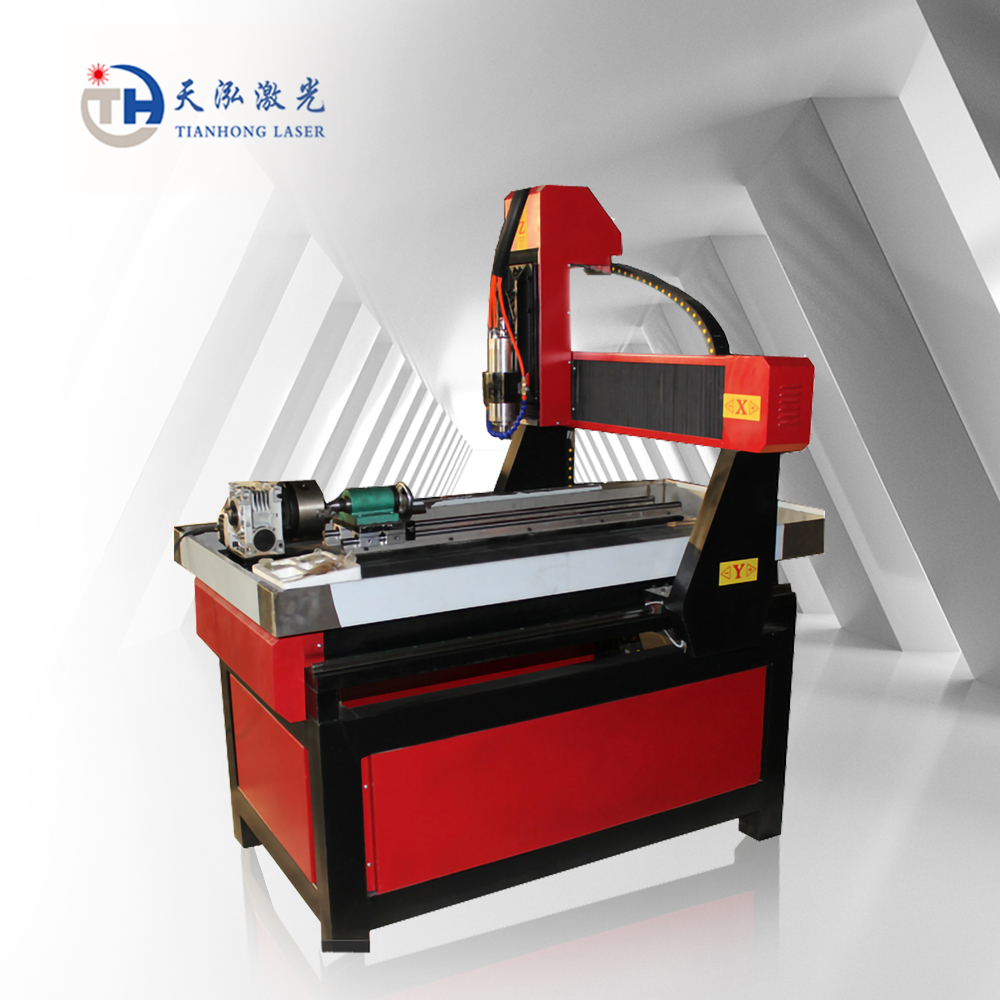

4.Round material engraving(need add rotary axis).
Sample
