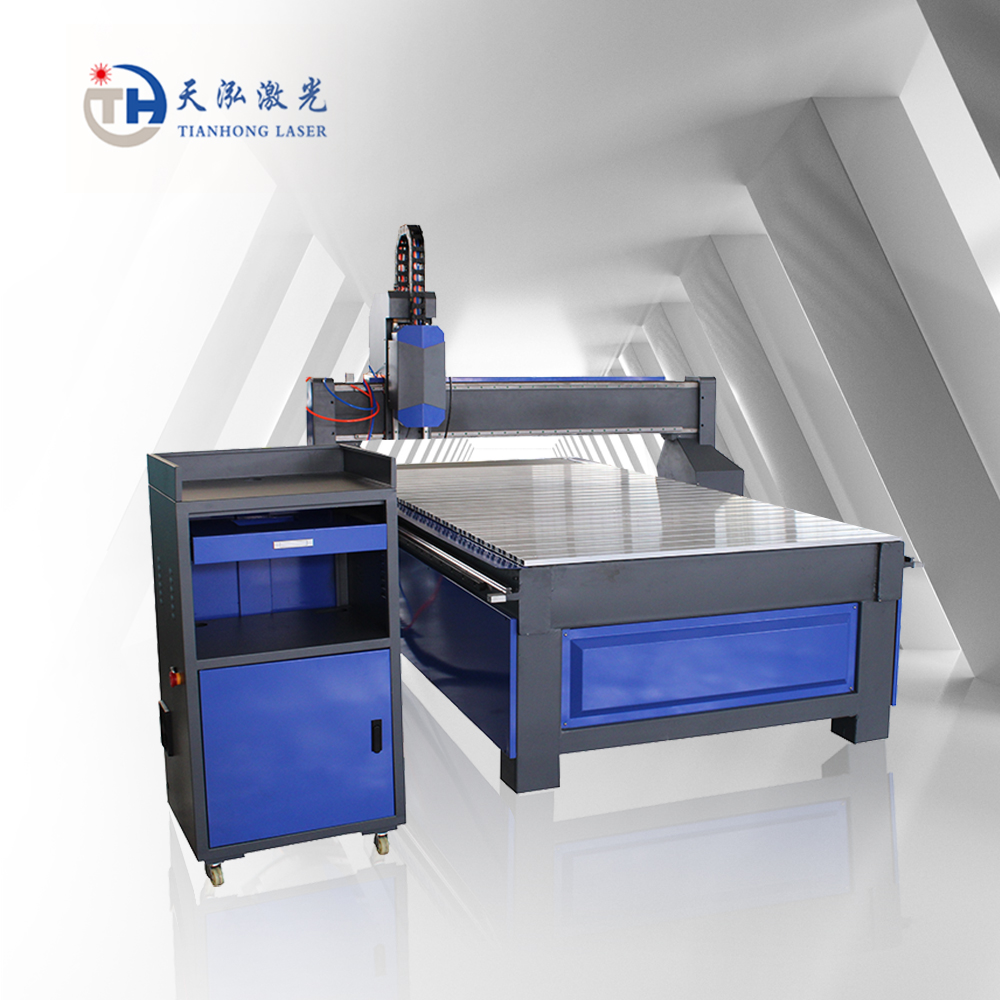

Advantages
1.Lathe bed use all-welded structure,strong reasonable,simple operation,and durable.
2.Powerful stepper motor driver,imported linear guide rails,running smoothly,high accuracy,long time service.
3.Gear wheel/ rack transmission,high precision,could engrave 1mm letter clearly.
4.Air cooling spindle/(Italy HSD Spindle optional)apply to long time processing of wood products.
5.The advanced professional control system compatible with many instruction format,may achieve process function in interruption of power supply,break-point and next day which is more convenient and save labor.
6.Comply with CE certification.
Technical Parameter
X,Y Working Area | 1300*2500mm |
Z Working Area | 120mm |
Resolution | +0.01mm |
Lathe Structure | Cast-iron Structure |
X,Y Structure | Ball Screw Transmission |
Z Structure | Germany Rolling Ball Screw,Hiwin Square Guide Rail |
Max. Idling Speed | 8m/min |
Spindle | 2.2KW |
Spindle Rotate Speed | 0-24000r/min,Variable Speed |
Inverter | Fuling |
Working Voltage | AC220V/50HZ,Single Phase |
Working Mode | Sub-Division Stepper Motor |
Driver | Leadshine 860 |
Command | G code,HPGL,U00,mmg,plt |
Operating System | DSP With USB Interface |
Diameter Of Cutter | φ3.175-φ12.7mm |
Cooling Mode | Water-Cooling |
Dust-Collect Function | Optional |
Work-Holding | By Clamp |
Net Weight | 300KGS |
Gross Weight | 350KGS |
Applicable Industries
Advertisement:engraving and cutting various labels,number plate,acrylic,etc.
Art craft:engraving characters of any languages and graphics on gifts and souvenirs.
Applicable Materials
Wood, aluminum board,plastic,density board,MDF board,wave board,PVC,acrylic,crystal,light marble and other nonmetal materials and light metal materials.
Sample
